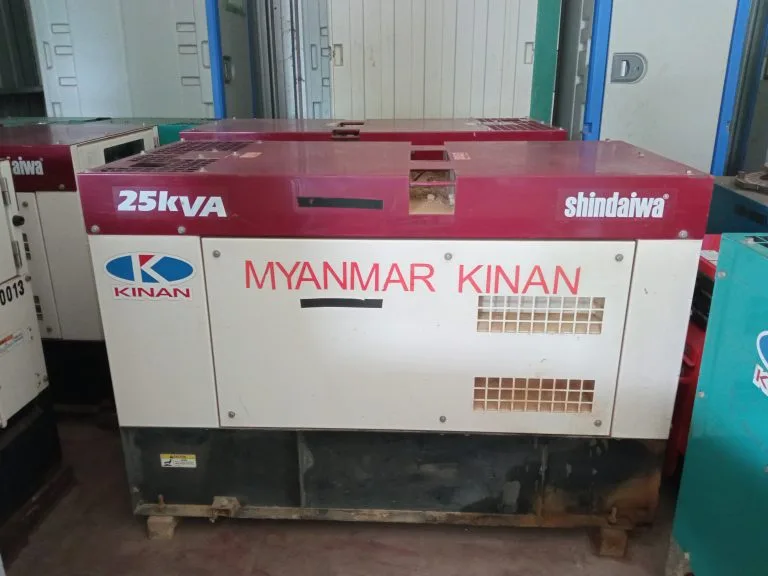

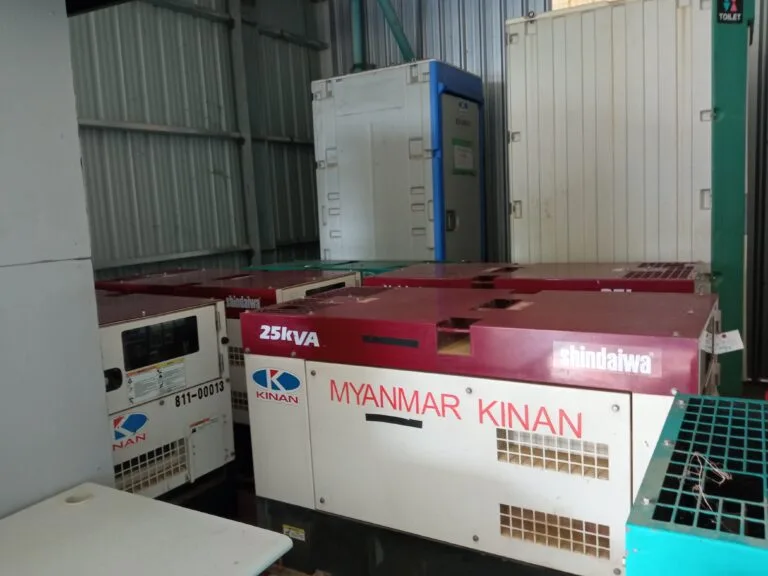

Product Name – 25 Kva Generator

Type – Sound Proof

Maker (Brand) – Shindaiwa  ( Yamabiko )

Model – DG25MK(2016)

Serial No –

Used Hours –

Manufacture Year – 2016

Selling Price – Sold Out

Type – Sound Proof

GENERATOR

Generator Type -Revolving magnetic field, Brushless 3-Phase Synchronous

Rated Frequency – 50Hz 60Hz

Rated Output – 20kVA 25kVA / 16kW 20kW

Rated Voltage – 400 (200)V 440(220)V

Rated Current – 28.9 [57.7]A / 32.8 [65.6]A

Winding – 3-Phase, 4-Wire

Power Factor ％ – 80

Insulation Class – F

Excitation – Self-Excitation (Brushless)

Number of Poles – 4

UNIT

Length mm – 1500

Width mm – 700

Height mm – 1000

Dry Weight kg – 625

Installed Weight kg – 705

Sound Level dB(A) – 58 @7m distance/No load

ENGINE

Types – Vertical Water-Cooled 4-Cycle Diesel Engine

Model -V2403（Kubota）

Number of Cylinders mm – 4、87（bore） x 102.4（stroke）

Continuous Rated Output – 19.1 kW / 23.7 kW (26.0 PS / 32.2 PS)

Rated Speed min-1 – 1500 1800

Displacement L – 2.434

Combustion System – Direct Fuel Injection

Cooling Method – Radiator

Lubricating Method – Forced Lubrication

Starting Method – Electric Start

Fuel Consumption L/Hr – 5.1 @3/4 load / 3.9 @1/2 load

Fuel Lubricant Oil – Diesel Fuel (ASTM No. 2-D) CD Class

Fuel Tank Capacity – 65

Lubricant Volume L – 9.7

Cooling Water Volume L – 9.7

Starting Motor Capacity V−kW – 12-1.4

Charging Dynamo Capacity V−kW – 12-30

Battery – 80D26R

At Myanmar Kinan, we sell used machines carefully selected by us and consign sales of our customers’ machines. All machines will be delivered within Myanmar. Please contact us as the conditions are different for sales requests outside Myanmar.
