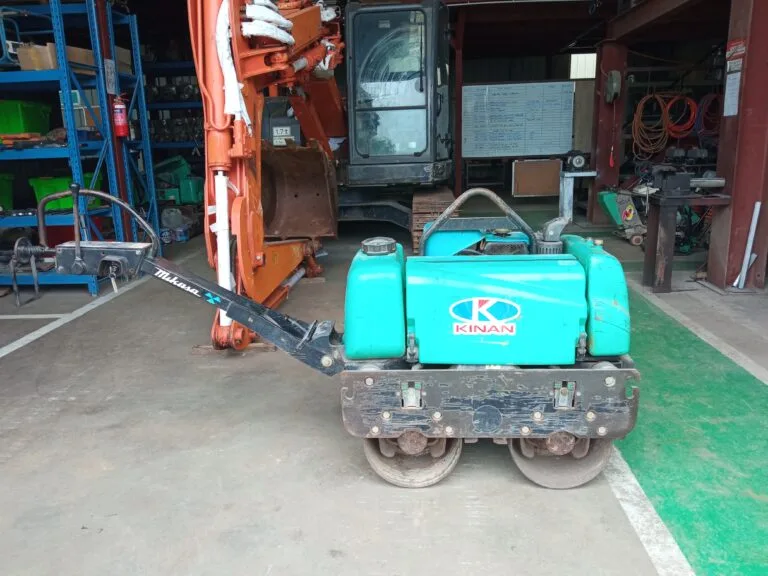

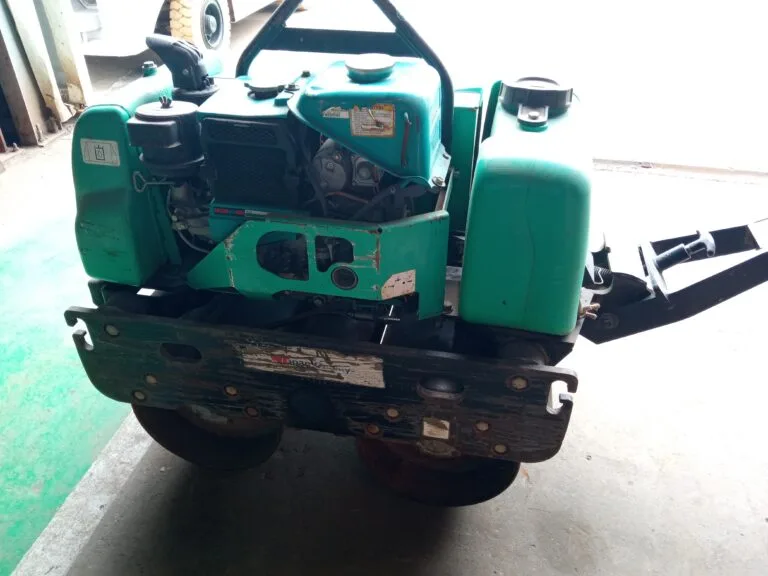

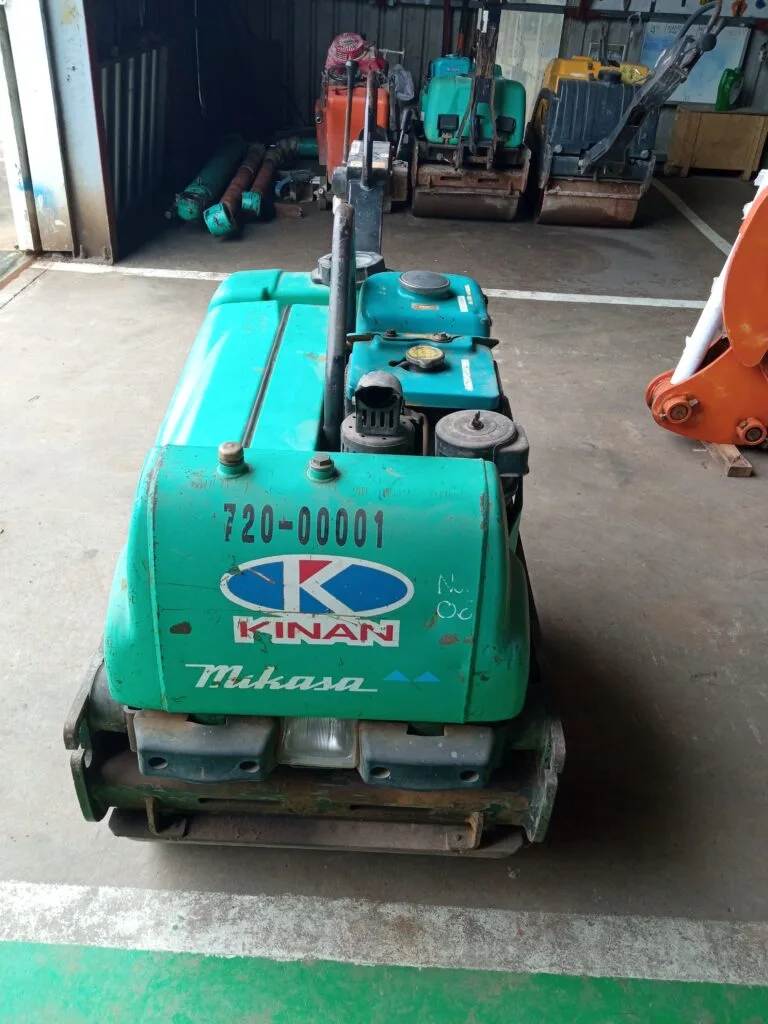

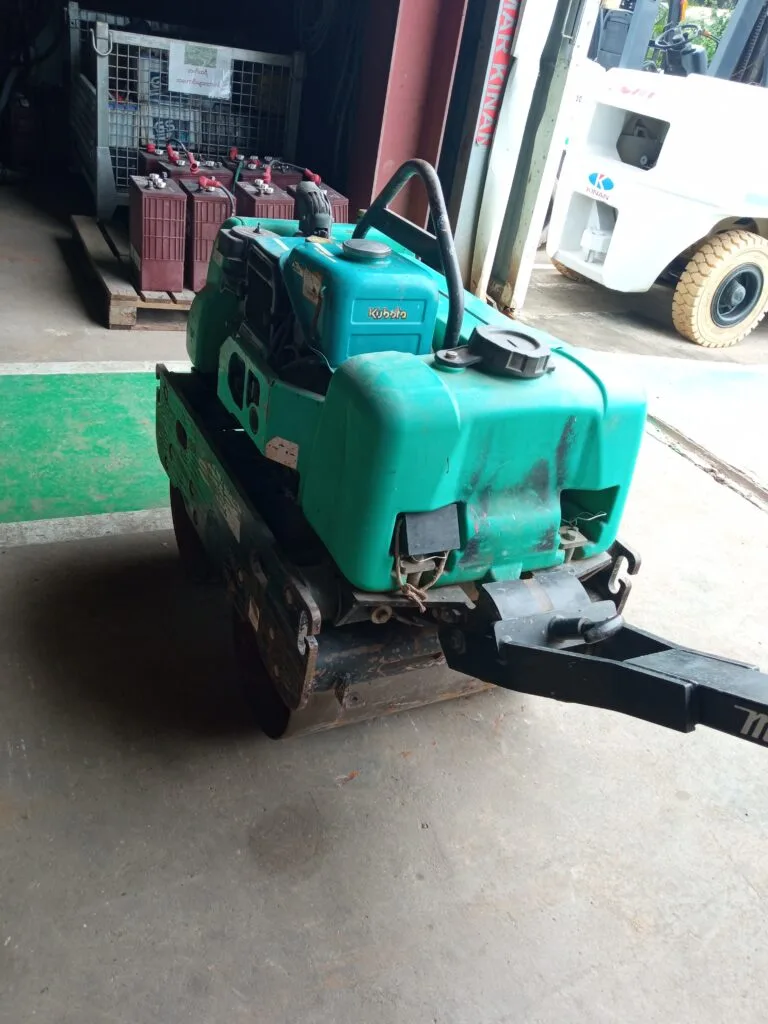

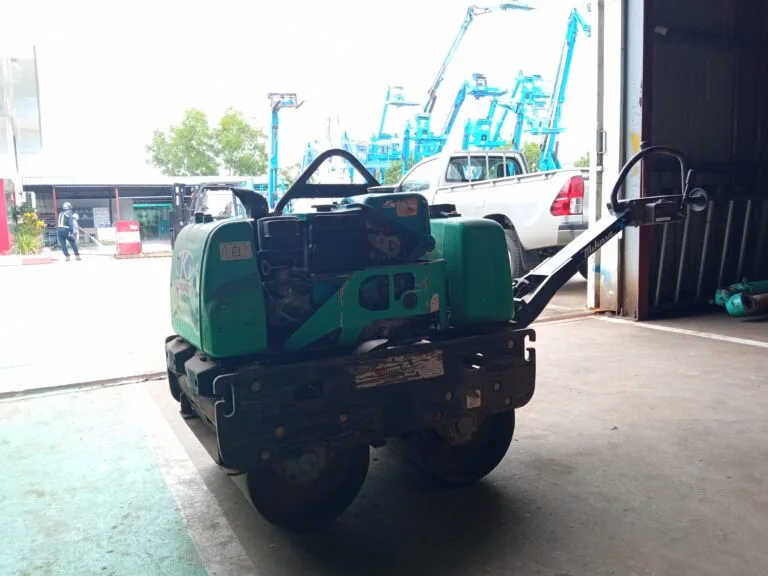

Product Name : 500kg Hand Roller

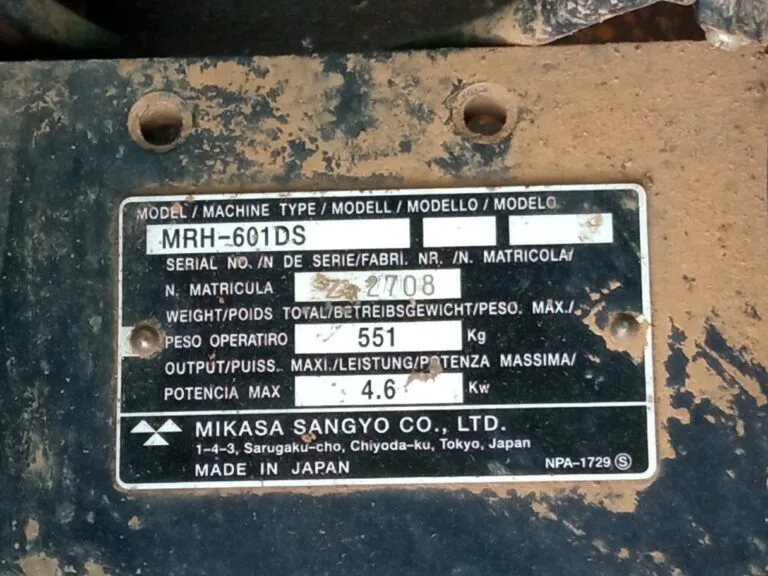

Model : MrH-601DS

Serial No : Z2078

Maker (Brand) : MIKASA

Manufacture Year : 2016

Selling Price : 6,000 USD

Dimensions (L x H x W) – 89.14 x 47.05 x 27.24 in (2265 x 1195 x 692 mm)

Drum Diameter – 13.98 in. (355 mm)

Drum Width – 25.59 in. (650 mm)

Distance between Axes – 20.47 in. (520 mm)

Weight – 1214.75 lbs. (551 kg)

Vibration Frequency3,300 vpm (55 Hz)

Centrifugal Force2,428 lbf (10.8 kN)

Gradeablility35 % (20°)

Working Speed0 – 1.86 mph (0 – 3 kph)

Lubricating Oil5.8 gallons (22 liters)

Water Tank Capacity7.92 gallons (30 liters)

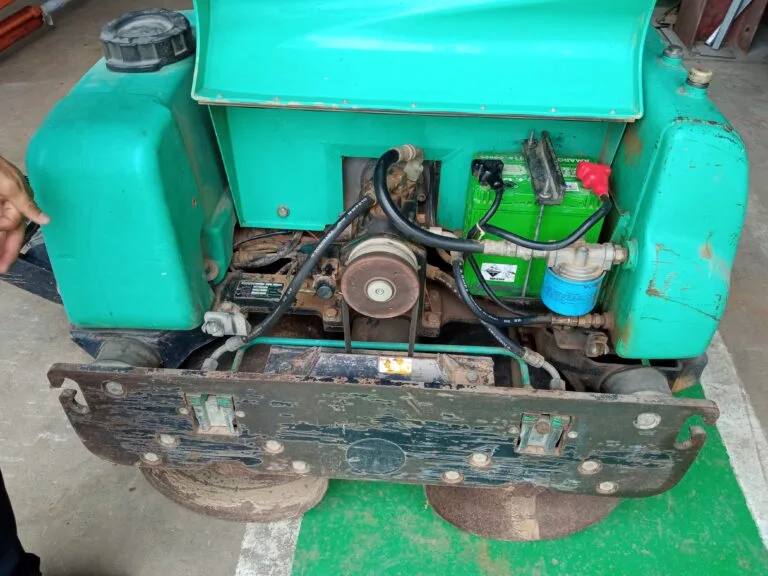

Engine Specifications

Engine Model – Kubota EA330-E3-NB3-HGMS-1

Engine Type – Diesel

Maximum Output – 6.2 HP (4.6 kW)

Fuel Tank Capacity – 5.6 quarts (5.4 liters)

Starting System – Electric

Max. Set Speed of Rotation – 2,650
