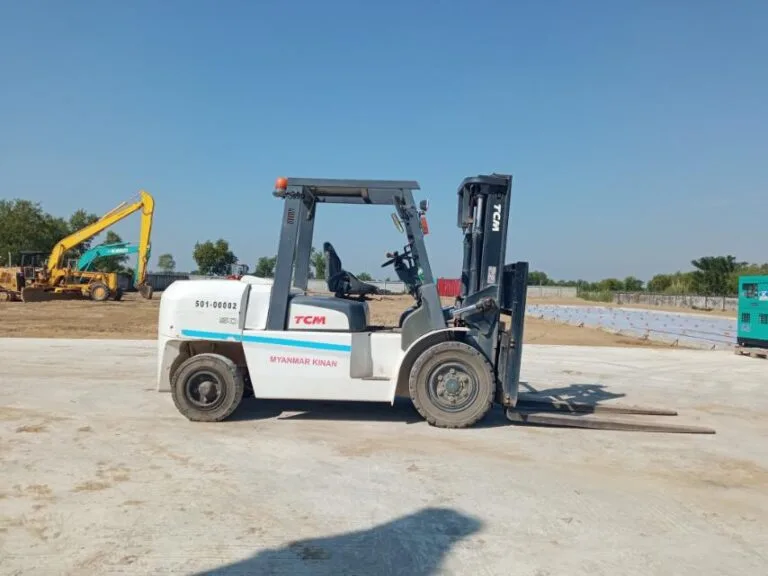

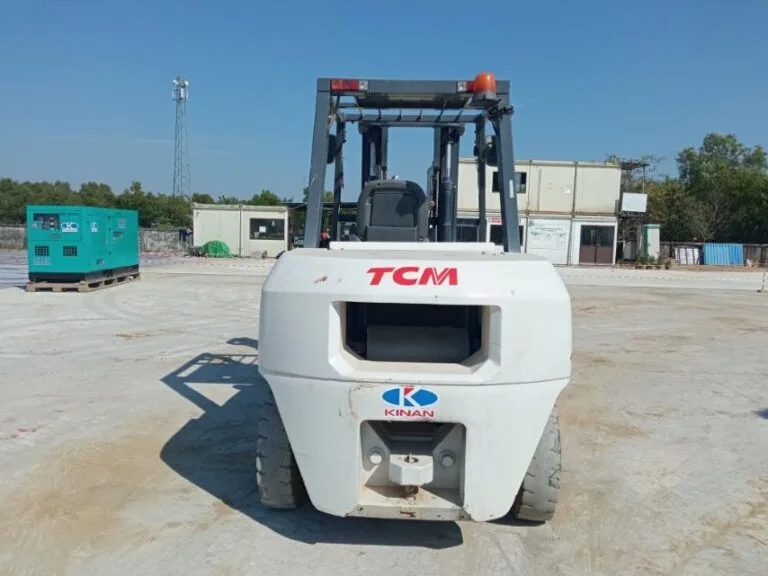

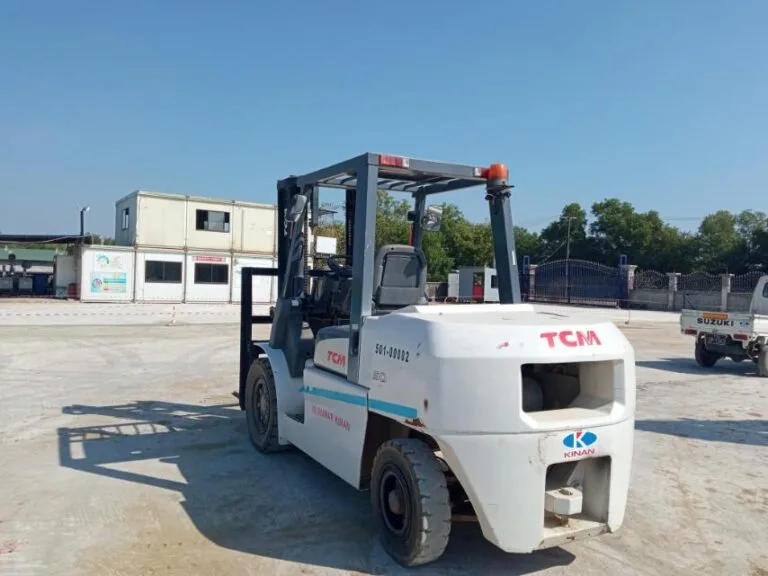

Product Name : 5T forklift

Model : FD50T9

Maker (Brand) : TCM

Used Hour : 1200

Manufacture Year : 2017

Selling Price : 39,000USD

Capacity  – 5000 kg

Load Centre  – 600mm

Power Unit  – Diesel

Engine Manufacturer  – Mitsubishi

Engine Model  – S6S

Maximum Rated Output –  64.7 KW

Rated RPM  – 2300 rpm

Number Cylinders / Displacement  – 6 / 4996cc

Transmission Automatic – 2 speed

Standard Dimensions

Model – FD50T9

Over Height ,fork raise(with backrest) – 4420mm

Maximum fork height – 3000mm

Max Height fork lowered – 2360mm

Backrest Height -1370mm

Free Lift-160mm

Fork thickness-60mm

Minimum ground clearance -140mm

Overall length (with fork )- 4610mm

length to fork face -3390mm

Fork Length-1229mm

Load Distance-590mm

Wheelbase- 220mm

Rear Overhand-600mm

Draw Bar Center Height-320mm

Overhead guard clearance from face to seat-1020mm

Over height (overhead guard)-250mm

Overall width-1480

Fork spread(outside)-(300 1290)mm

Tread(front)-180mm

Tread(rear)-1195mm

Fork width-150mm

Outside turning radius-3040mm

Inside turning radius-200mm

Minimum  intersecting aisle -2850mm

Tilt angles ( forward – backward) – (6° 12°)mm

Dimensions with front dual drive wheel (option)

Tire size (front dual) – 7.50-16-8 PR

Service Weight – +20Kg

Overall width – 1830mm

Tread Front – 1340mm

Outside turning radius-3125mm

Inside turning radius-200mm

Minimum intersecting aisle – 750mm
