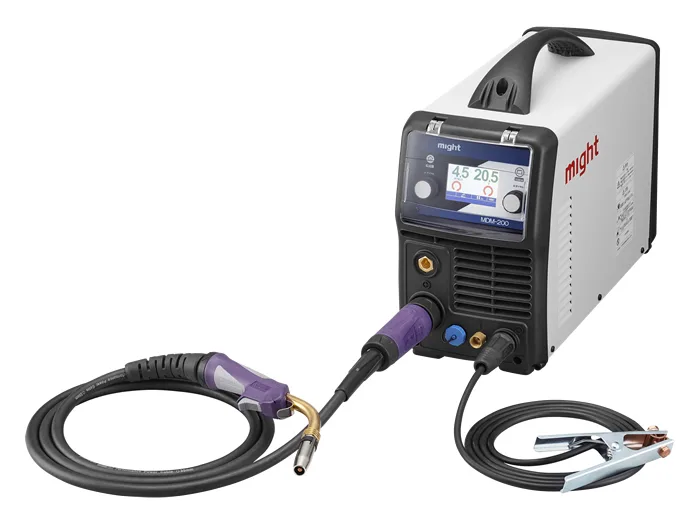

Product Name : Multi-Welding Machine

Model : MDM-200

Model

MDM-200

Welding mode

CO2 / MAG / MIG

Hand stick

TIG

Rated input voltage (V)

Single phase 100

Single phase 200

Single phase 100

Single phase 200

Single phase 100

Single phase 200

Rated input current (A)

37

38

30

37

28

twenty two

Rated frequency (Hz)

50/60

Rated input

(KVA)

3.7

7.6

3.0

7.4.

2.8

4.4

(KW)

3.5

7.2

2.8

7.0 7.0

2.7 2.7

4.2

Rated output current (A)

130

200

100

200

140

200

Output current range (A)

25-130

25-200

10-100

10-200

10-140

10-200

Maximum no-load voltage (V)

67 (CO2 / MAG / MIG)

Rated usage rate (%)

40

cooling method

Forced air cooling

Input code

4.0sq x 2.5m (tip crimp terminal 5.5-5)

Outer diameter dimension (mm)

220W x 410H x 520L

Mass (kg)

18
